BASIC ISSUE and TROOP INSTALLED ITEMS

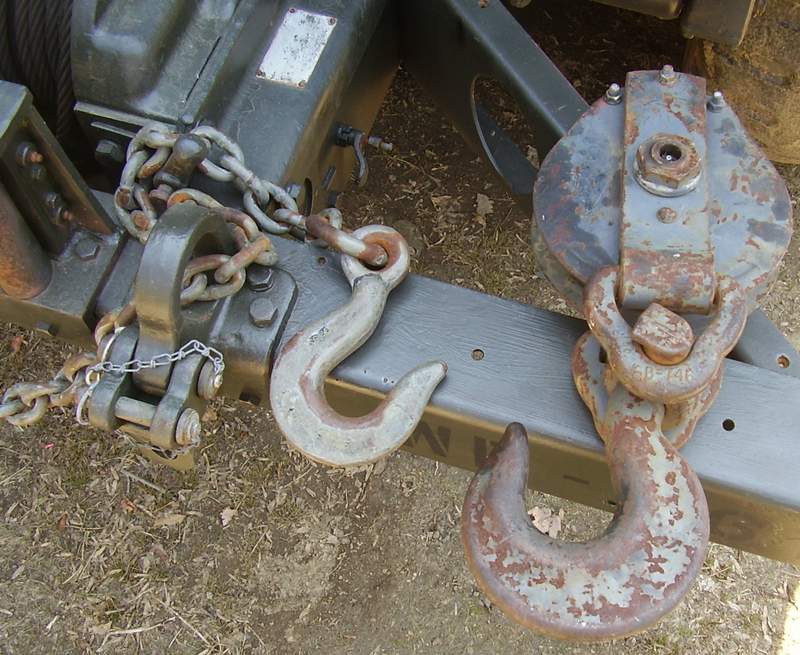

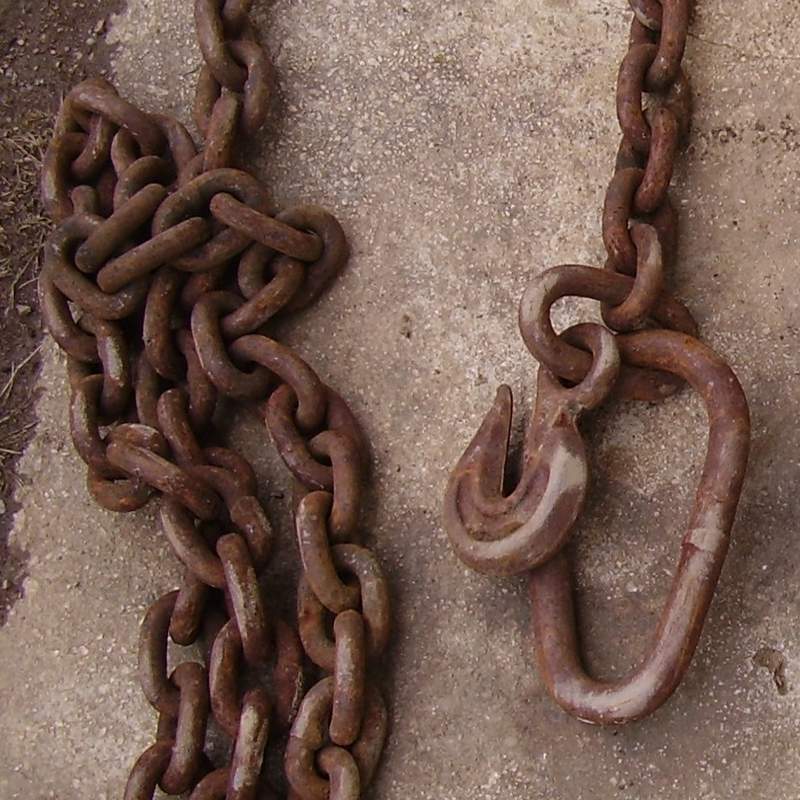

Some things are readily available, like the 5-ton snatch block (3940-105-9933) and 5/8" 16 ft chain with grab hook and pear shaped coupling (4010-473-6166).

2009 0325 whinch hook and chain, 5-ton snatch block.jpg2009 0406 16ft chain w grab hook and coupling link.jpg

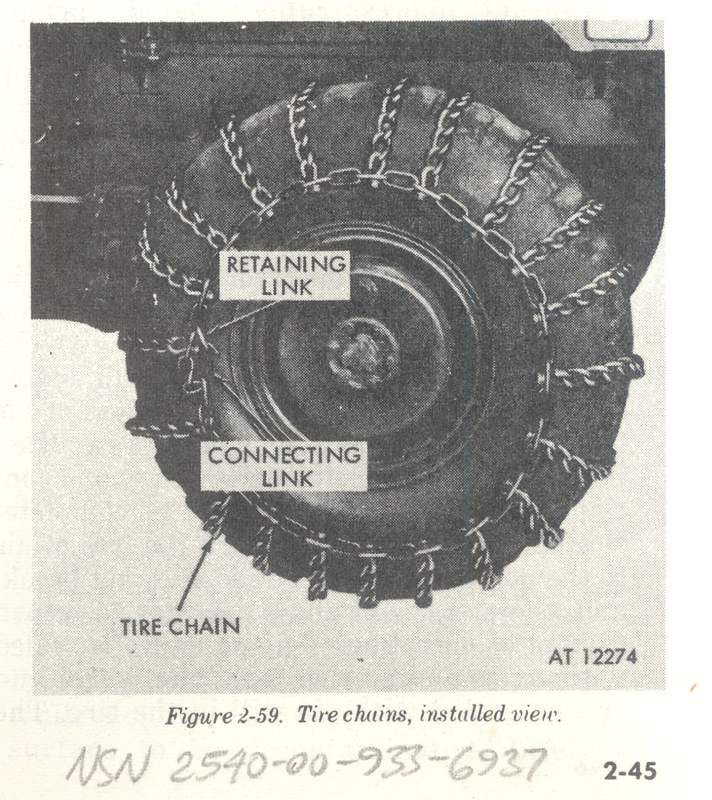

Other things were not so easy to find, like the tire chains (2540-933-6937), which I ended up putting together from 1100-20 chains. Specifications from pictures in the TMs and specifications based on FSNs.

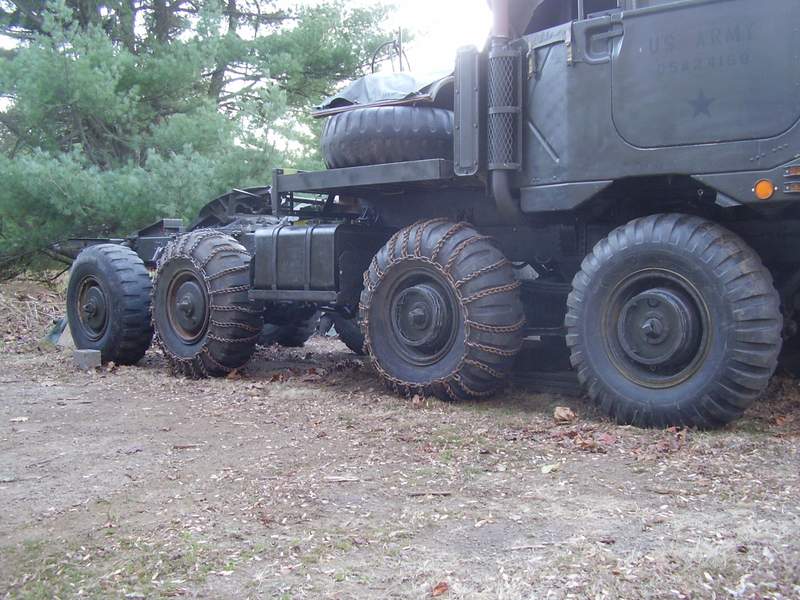

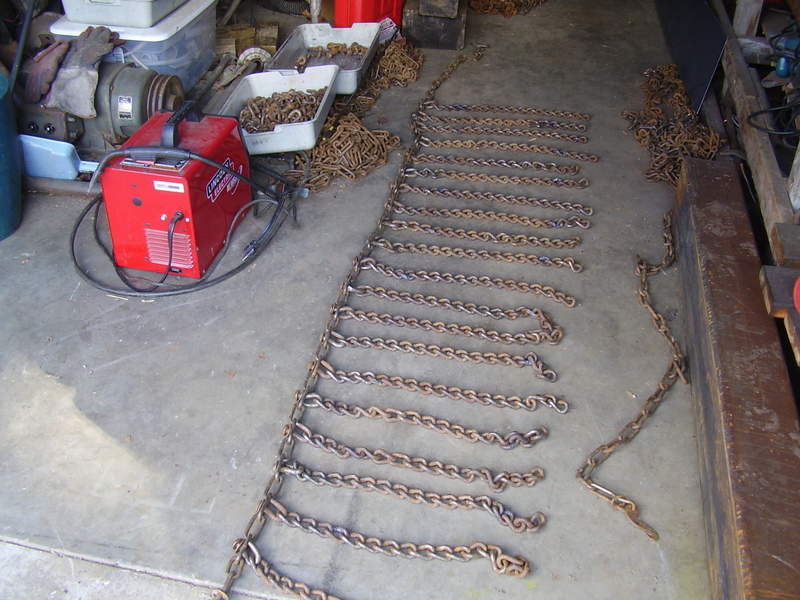

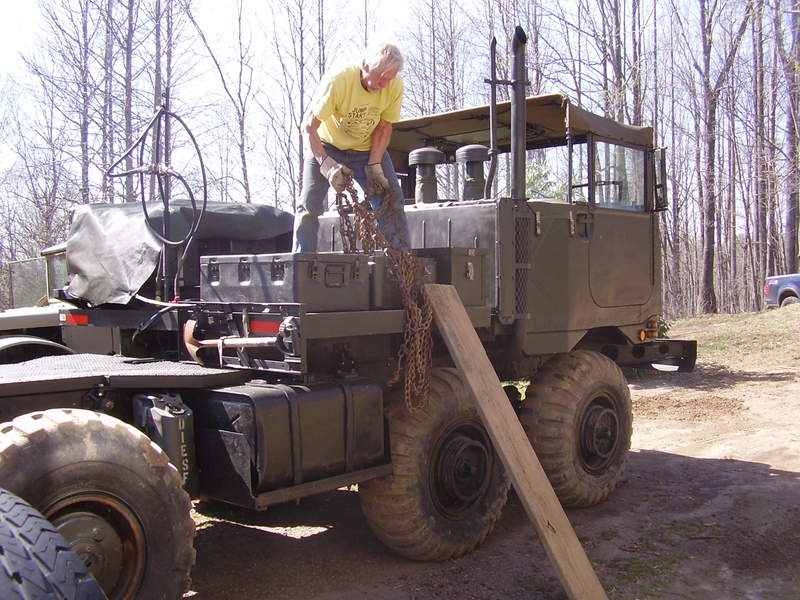

2010 0906 tm image, xm757 tire chains, ms500055-30.jpg2010 1030  work on tire chains, cross links.jpg2010 1110 xm757 tire chains, nos goodrich, goodyear, 2r 3r.jpg2011 0417 removed and stowed the tire chains,.jpg

Configured for the Pershing 1A , the xm757 was equipped with a 10KW MEP023A 400Hz genset.

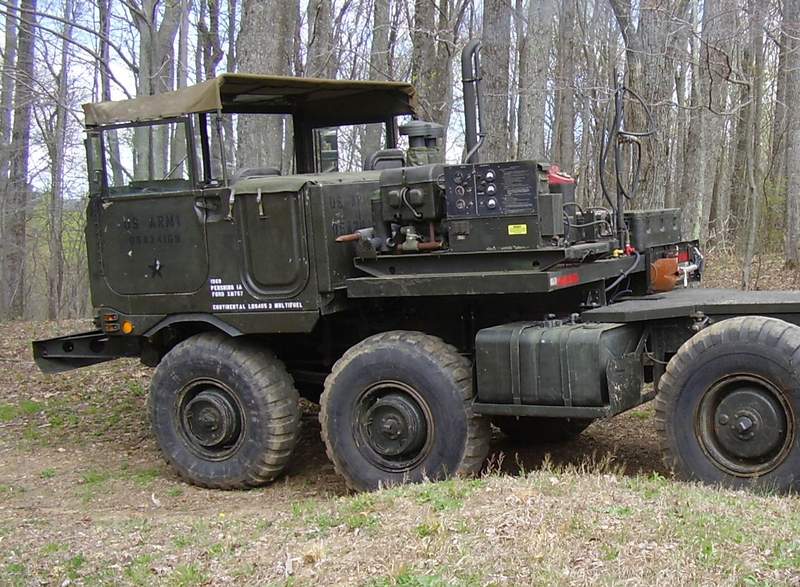

I had a MEP18A mounted on the dromedary platform for several years until the generator head failed. This is what it looked like at the time (compare vintage image).

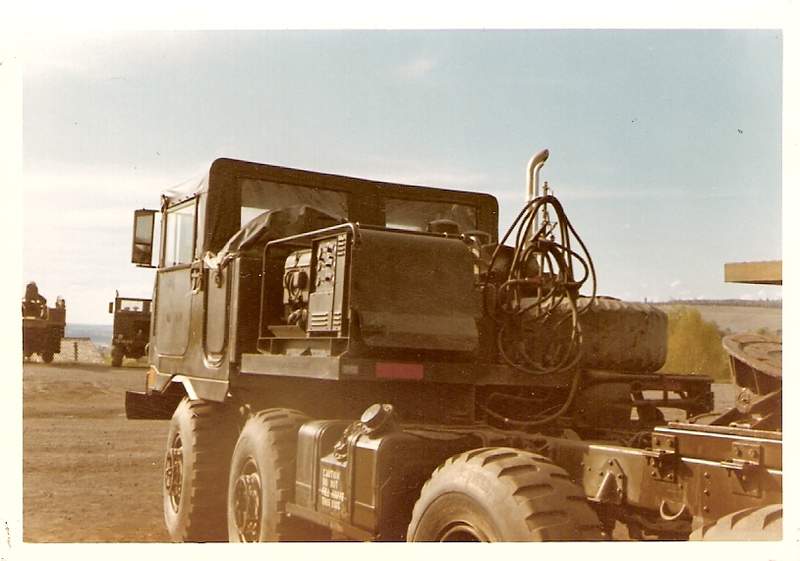

1971 vintage image, germany, left rear, approx date.jpg2012 0408  xm757 with mep018a 10kw genset, left side.jpg


cranetruck

Moderator
Super Moderator
Steel Soldiers Supporter
10,350
75
48
Location
Meadows of Dan, Virginia
FORDING THE XM757 SIR!

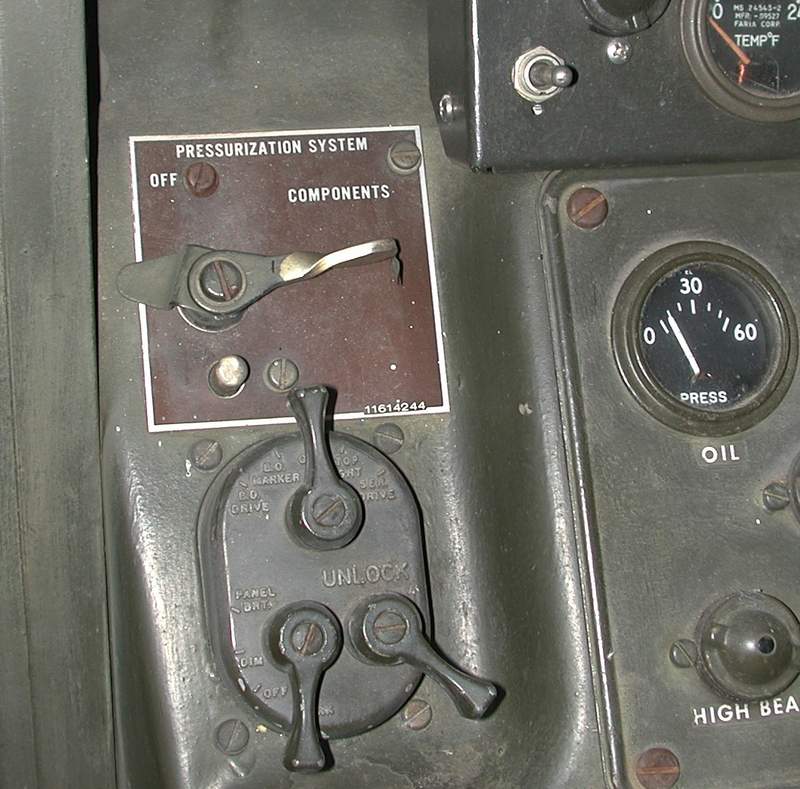

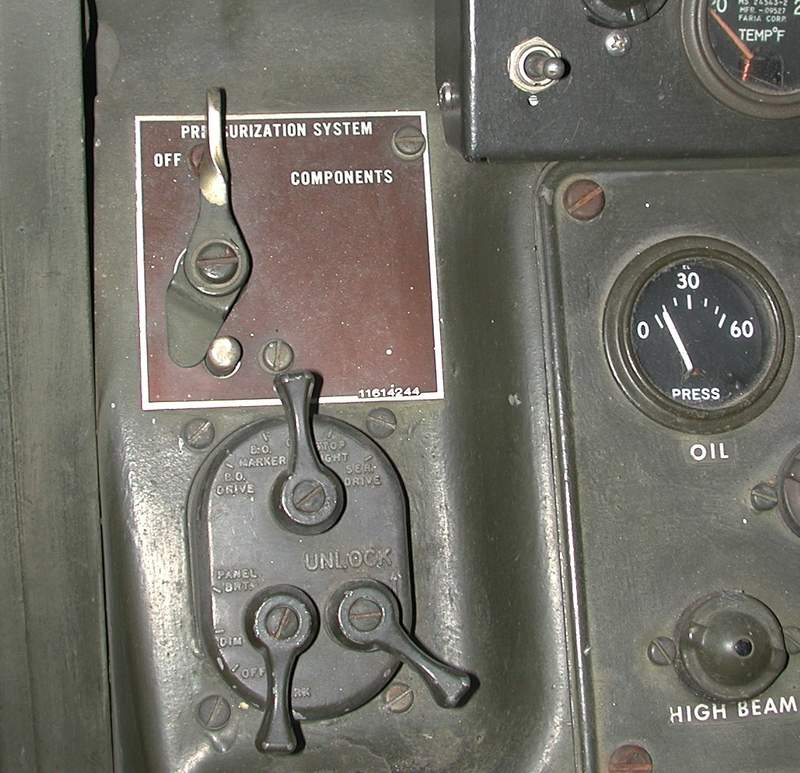

pressurization off.jpg pressurization on.jpg

Pressurize "components" with the flip of a switch, wait a few minutes and the truck is fording ready.

It's "fording ready" because of design features like sealed brake drums,

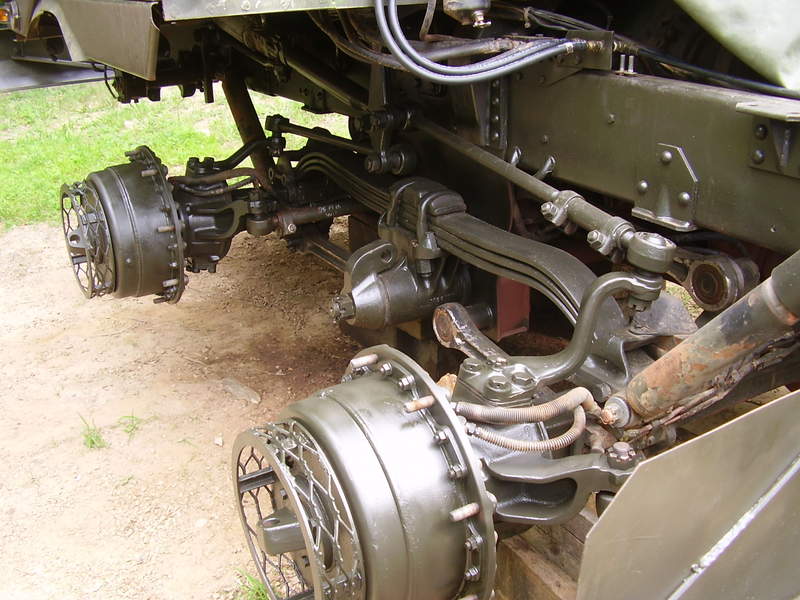

2007 0709 sealed brake drums, steering linkage, front axles.jpg

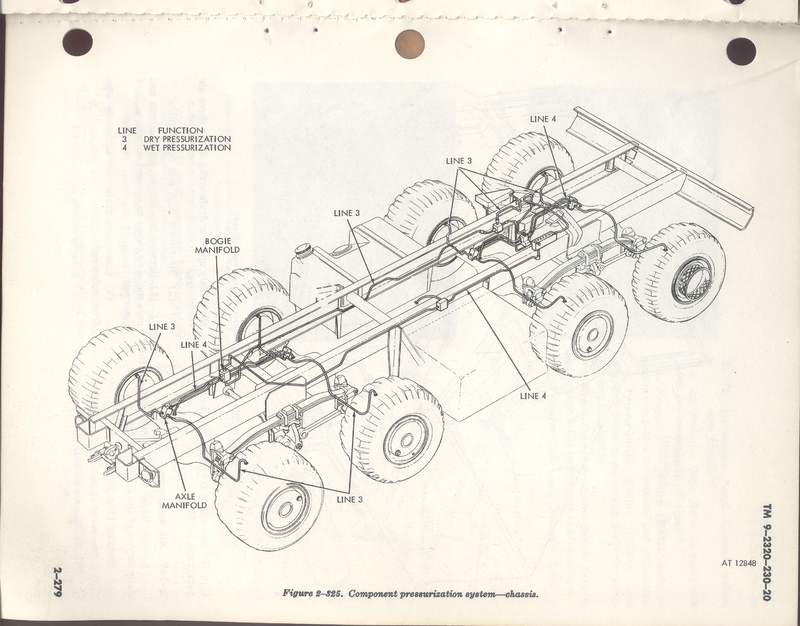

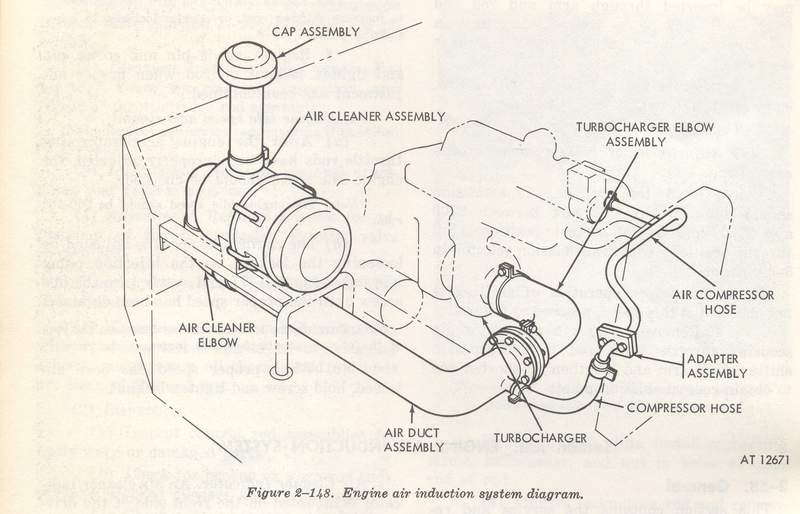

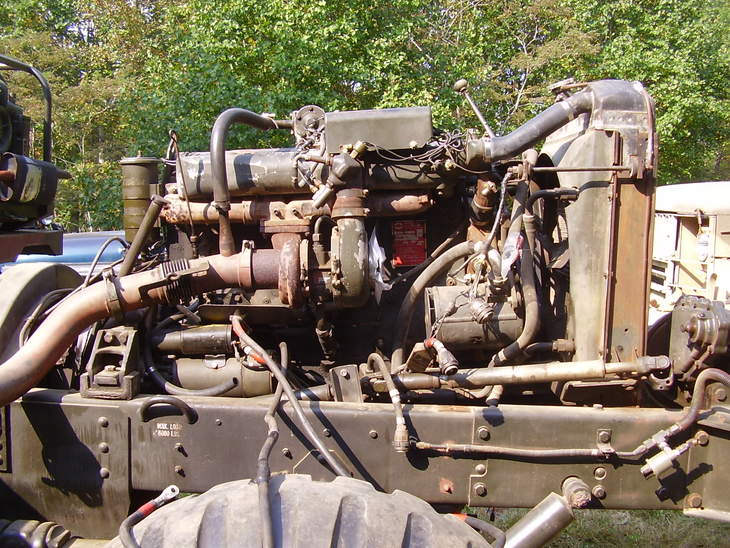

pressurized engine, transmission and axle housings. Compressor gets air from the main air intake, engine breather tube joins the exhaust pipe and battery box within the cab out of reach of water at any level.

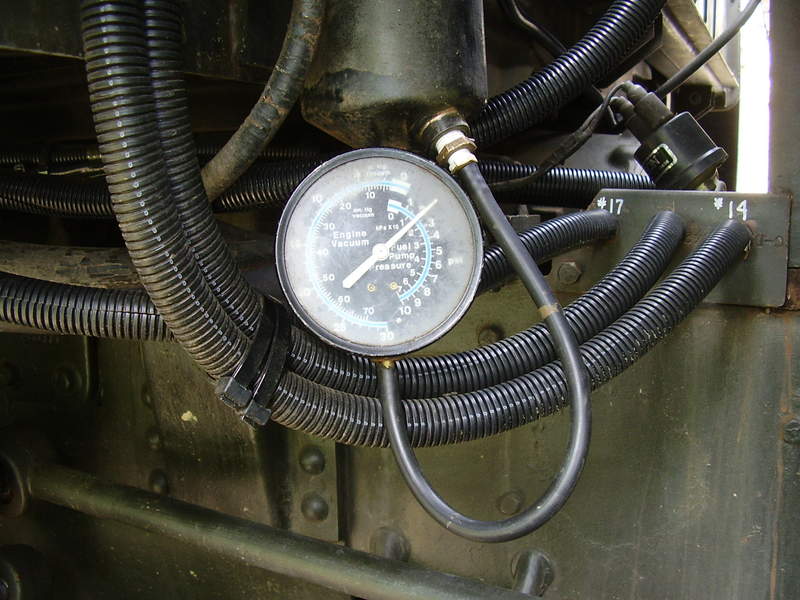

2010 0922 breather tube joins the exhaust pipe, cab lift.jpg2011 0510 pressurization pressure,.jpg2011 0510 xm757, pressurization, line 3, line 4, (1),.jpgcompressor air intake, pressurization.jpg

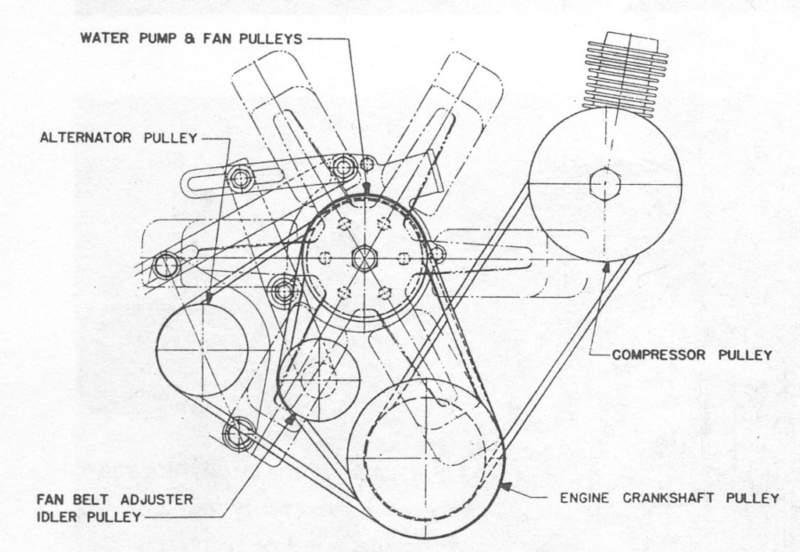

The fan belt is separate from the generator drive belts and is designed to slip under water and so does not effect power generation.
2007 0812 xm757 fan belt.jpg


m715mike

Well-known member
2,797
3,823
113
Location
Montgomery, Texas
Whoa!!!! I throw my weight behind Woodsplinter, get busy at work and come back to this!!!!!

Okay, it's time for a come back. VOTE FOR THE ARIZONA DEUCE!!!!!


cranetruck

Moderator
Super Moderator
Steel Soldiers Supporter
10,350
75
48
Location
Meadows of Dan, Virginia
XM757 HEATING AND DEFROSTING SYSTEMS

Heaters for crew compartment, defrosting and engine are entirely separate and fuel burning, so that the engine does not have to run for the heaters to be operational.
Coolant heater with circulation pump.

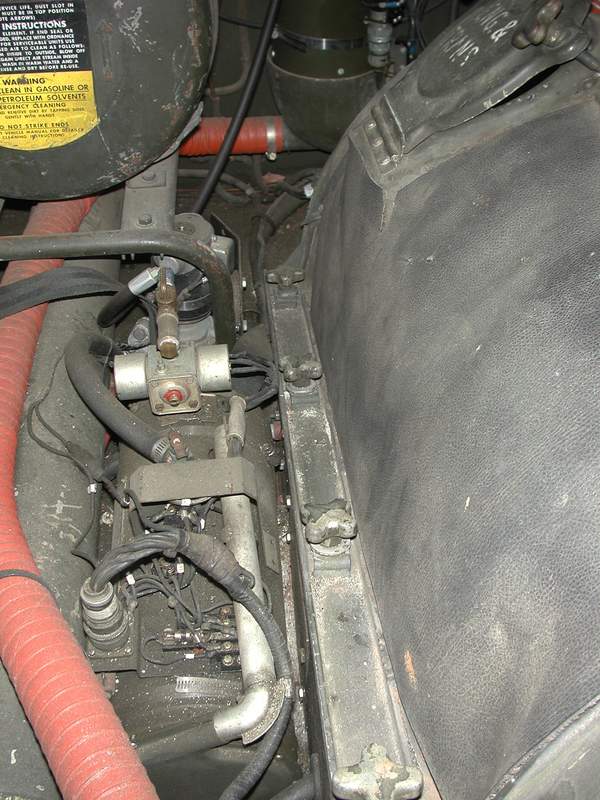

2015 0328 coolant heater with circulation pump, heating and defrtosting systems.jpg

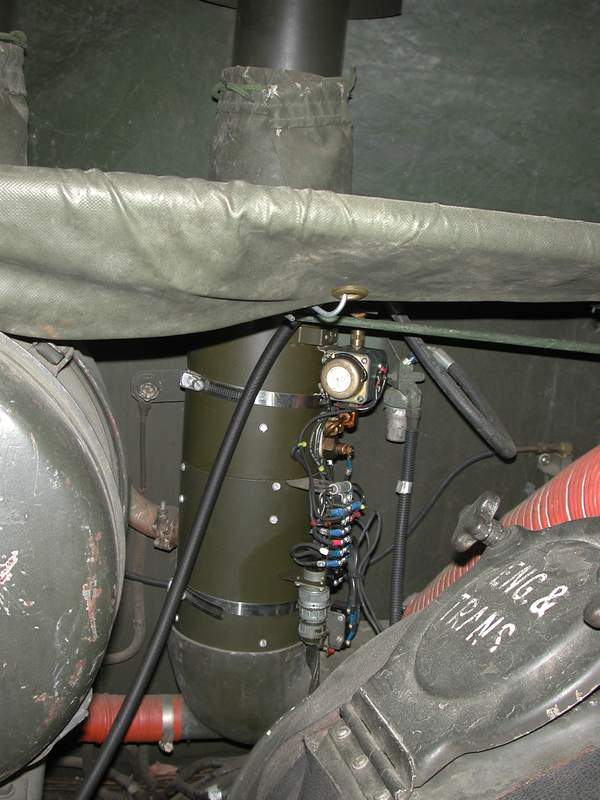

Benmar crew compartment heater, including defrosting.

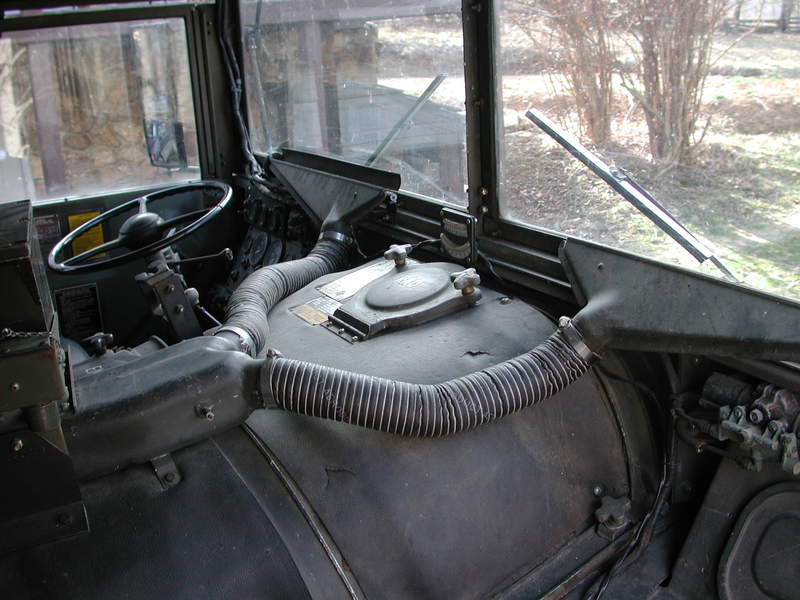

2015 0328 benmar crew compartment heater, heating and defrtosting systems.jpg 2015 0328 defrosting nozzles, heating and defrtosting systems.jpg
Also, since the starting battery has low capacitance (about 30 AH), a separate "house battery" provides power for all other 28VDC installations, including radio and the heaters.

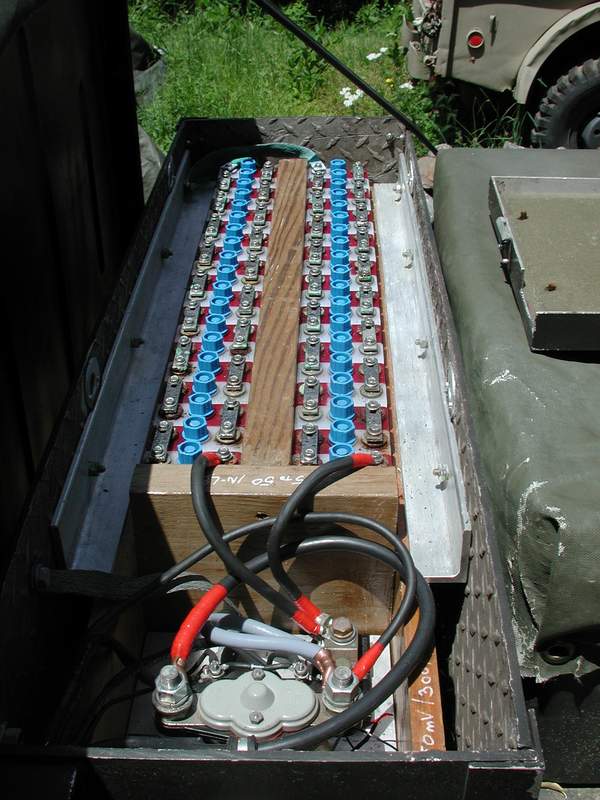

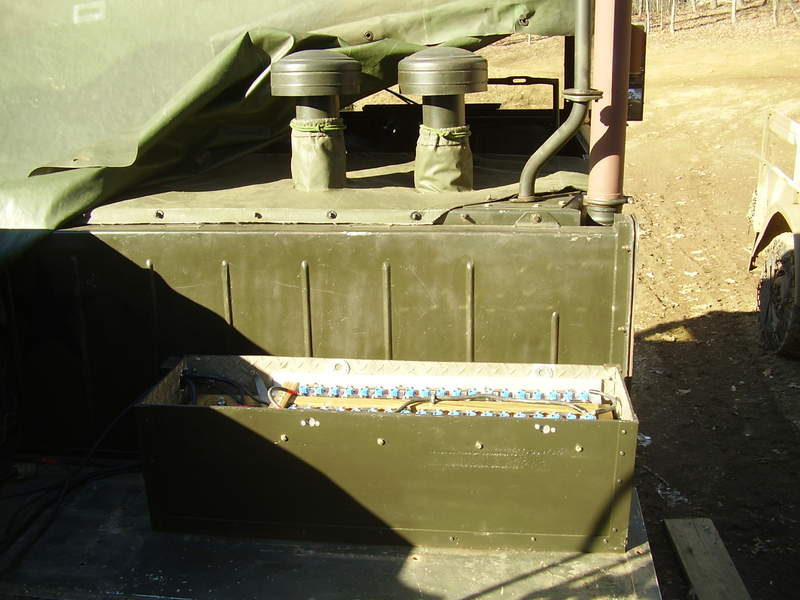

2013 0622 nicd house battery compartment,.jpg2011 0211 house battery located behind the cab.jpg

The second air intake "mushroom" seen in the picture is for the crew compartment heater.
All batteries are Nicad vented cell type.
